Circular Half-loop

Mage of the Circular half-loop. Mage of the Circular half-loop.

The transformation of a single turn loop to a circular half-loop is analogous to the transformation of the dipole to the monopole, where a ground plane is inserted at the image plane of the antenna. The circular half loop antenna consists of a single wire bent into a half circle and mounted on a ground plane. The antenna is fed through the ground plane at one end while the other end is terminated on the ground plane.

The circular half loop is a linearly polarized, low gain antenna with a moderate impedance bandwidth.

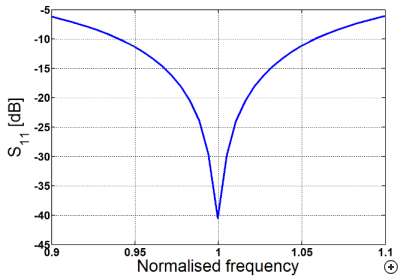

Typical total 3D radiation pattern at the center frequency. Typical total 3D radiation pattern at the center frequency. Typical S11 performance of the antenna. Typical S11 performance of the antenna.
