CPW-fed Annular Monopole Antenna

Image of the CPW-fed annular monopole antenna Image of the CPW-fed annular monopole antenna

Integrated, lightweight, wideband antennas have received much attention following the development of wireless communications. The CPW-fed annular annular monopole antenna is a printed version of the Discone (also available in Antenna Magus) and achieves an ultra-wideband (UWB) impedance bandwidth of 8:1, while the radiation pattern transforms from omni-directional at the lower band to multipath at the upper band.

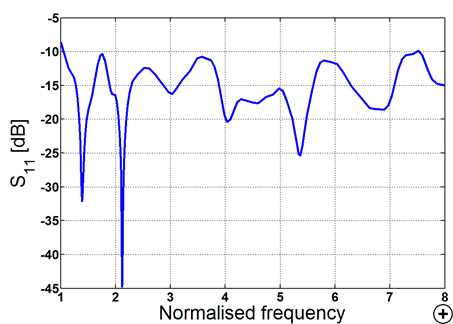

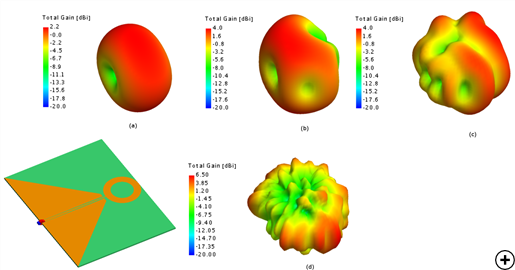

Typical total gain patterns at (a) fmin, (b) 2fmin, (c) 4fmin and (d) 8fmin Typical total gain patterns at (a) fmin, (b) 2fmin, (c) 4fmin and (d) 8fmin Typical S11 versus normalized frequency Typical S11 versus normalized frequency
