Folded Spherical Helix Dipole

Image of the Folded Spherical Helix Dipole. Image of the Folded Spherical Helix Dipole.

The Folded Spherical Helix Dipole (FSHD) is an electrically small self-resonant antenna, which exhibits a good impedance match with a low Q at a value ka ~ 0.27, where k = 2*(pi/wavelength) and a is the radius of a sphere that can completely encapsulate the antenna. An antenna is considered electrically small if ka < 0.5.

For a 4-arm FSHD the input impedance is typically ~ 50 Ohms, but this can be adjusted by varying the number of helical arms and the number of turns. Furthermore the FSHD can be configured to either have linear or elliptical polarization by changing the direction of rotation of the helical arms between the two hemispheres.

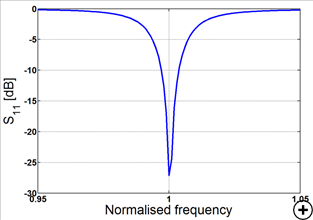

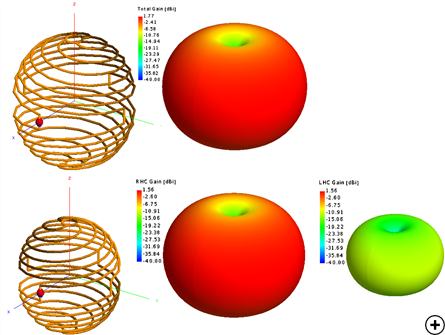

Typical radiation pattern at the center frequency for a Linear (top) and RHC (bottom) polarized design Typical radiation pattern at the center frequency for a Linear (top) and RHC (bottom) polarized design Typical reflection coefficient versus frequency for a 4-arm FSHD Typical reflection coefficient versus frequency for a 4-arm FSHD
