Ultra-Small Integrated Monopole

mage of the Ultra-small integrated monopole. Image of the Ultra-small integrated monopole.

The ultra small integrated monopole for integrated WLAN applications has been reduced by 70% when compared to a normal printed monopole. Structures such as this one - based on an ultra slow-wave transmission line design - have received significant attention as a way to reduce the size of passive components. The antenna consists of a cascade of 5 unit cells of the ultra slow-wave transmission line without the metal ground plane, where each unit cell consists of three layers - a patch on the bottom layer and inductive loops on the other layers - all connected with vias.

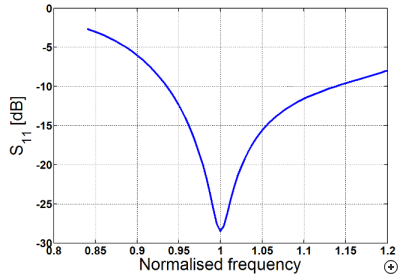

Typical 3D radiation pattern at the center frequency. Typical 3D radiation pattern at the center frequency. Typical S11 performance of the antenna. Typical S11 performance of the antenna.
